Cryptosec PCI v.1.0

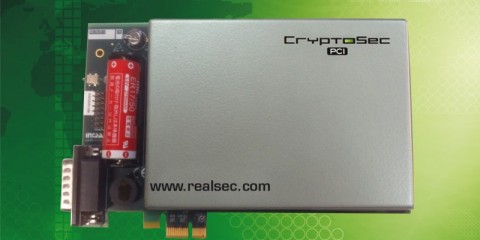

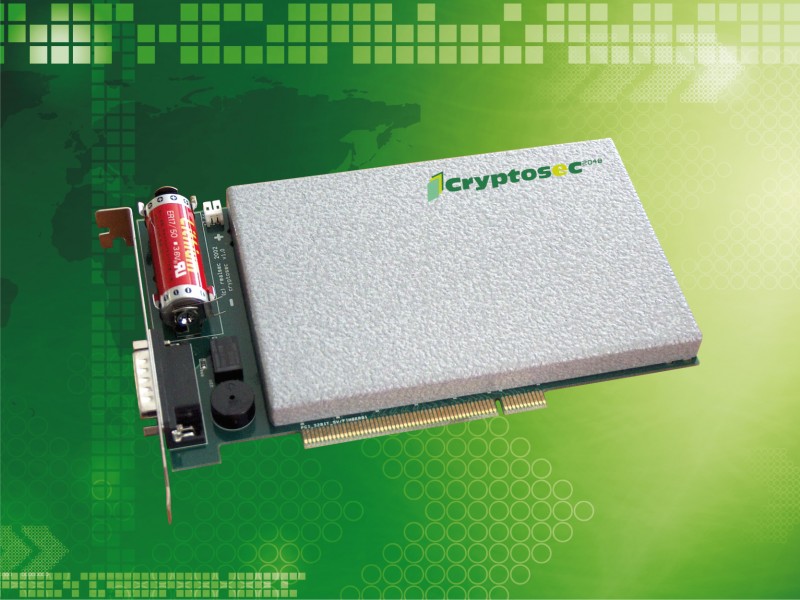

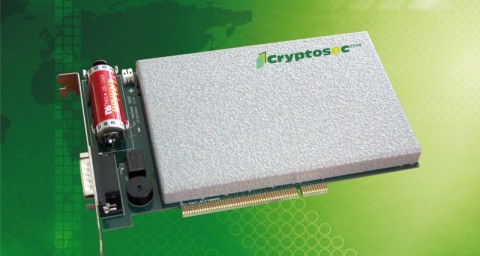

A board-shaped Hardware Security Module (HSM) that can be connected through a PCI bus inside the same equipment that houses the application that uses it. High performance, versatility, suitable for integrators.

SKU: Cryptosec-PCI-v1.0 Categories: ,

A board-shaped Hardware Security Module (HSM) that can be connected through a PCI bus inside the same equipment that houses the application that uses it. High performance, versatility, suitable for integrators.

Hardware-based encryption systems are considered highly secure due to their integrity and independence from the systems they interact with.



  • Two RSA coprocessors
  • Symmetric DES coprocessor
  • Special-purpose bus for very high-speed symmetric encryption operations
  • 128 Kbytes of high-security internal memory (this memory is automatically deleted when an intrusion is detected)
  • 2.1 Mbytes of high-security internal storage
  • Hardware random number generator
  • Port with asynchronous communication capability Configurable as: RS-232, I2C, USB etc., isolated from processor and memory.
  • PCI interface
  • Real-time clock
  • Epoxy resin protective covering and reinforced casing made of 0.9 mm steel plate

The system consists of a Cryptosec cryptographic hardware module version 1.0 and PKCS#11 firmware version 01.00.0308 with the following capabilities:

  • RSA: signature, verification, encryption and decryption of lengths between 1024 and 4096 bits.
  • DES, Triple DES-EDE, Triple DES-EEE: encryption and decryption.
  • MD5 and SHA-1 hash functions.
  • RNG.
  • Key generation through a random number generator according to that specified in FIPS 186-2 (with Change Notice) and approved by FIPS 140-2.

FIPS 140-2, Level 3
