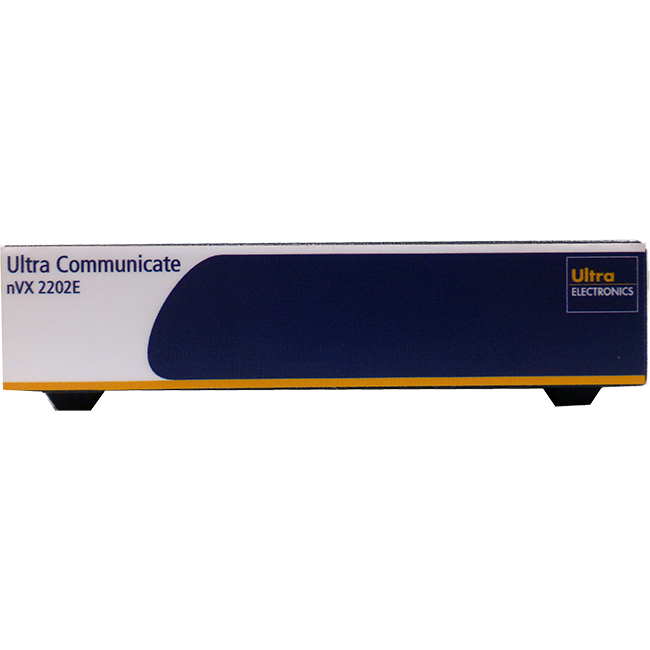

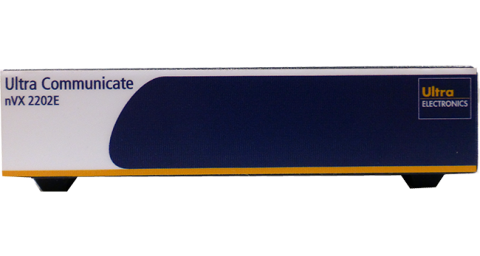

Ultra Electronics nVX 2202E

Secure Communications Optimised Packet Engine

The nVX 2202E single platform device enables effective communication at the remote sites of an enterprise network. As an example with the nVX 2202E, mobile, regional and remotely located teams are able to access voice and data communication channels available within their organisation’s headquarters.

Delivering specialist communication solutions
The nVX 2202E supports a wide range of protocols and physical interfaces. This enables customers to aggregate and effectively deliver multiple service streams over many types bearer communications medium including GSM and Satellite (VSAT).

Combining analogue voice with data services such as FAX, IP, PoS and 3G/4G support, the nVX 2202E cost effectively manages bandwidth through dynamic packet fragmentation and compression whilst ensuring Quality of Service.

The nVX 2000 range devices are deployed where flexible and robust communications is essential and in strategic and tactical applications. The products offer intelligent communications routing, multiplexing or protocol translation. With other Ultra Communicate and Ultra Encrypt products from AEP, the nVX 2202E provide wide area and satellite networking in remote territories with a high level of security.

Key business benefits

  • Remotely re-configurable
  • Bandwidth reduction especially for voice
  • Management flexibility
  • Operation cost reduction
  • Low cost of ownership
  • Comprehensive training & configuration support

Applicable markets

  • Maritime
  • Defence
  • Emergency services
  • Banking
  • Small and large enterprises


  • High availability
  • Bandwidth optimisation
  • Aggregation of network services
  • Possible to download or change configuration remotely


  • Deployable in many different vertical sectors and enterprise network operations
  • Support for a wide range of protocols, physical interfaces and network topologies
  • Any services over any bearer(s)
  • Data and voice (analogue and digital) in a single platform if required
  • Next generation wired and wireless IP
  • Support for legacy network protocols
  • Multi-hop, multi-bearer switching
  • Central control and simple management
nVX 2000 Platform Hardware Specification
Fixed Data Interfaces
Ethernet 10/100 (fixed) 1
WAN (serial) 1
Fixed voice interfaces
Supported optional modules
Approvals CE, FCC
Dimensions Width = 140 mm (5.5in)
Depth = 95 mm (3.75in)
Height = 38 mm (1.5in)
Weight 0.5Kg
Power External AC power adapter supplied with the product
90-250v AC 50-60Hz
Power consumption = 10W
Operating temperature 0 deg C to 45 deg C
Reliability MTBF > 65,000 hours at +40 deg C
Operating humidity 30-90% RH (non-condensing)

1. There are two analogue voice ports. Either both can be FXS or one of these can be FXO

Selection of extensive protocols and features supported

  • Frame Relay
  • X.25
  • IP routing
  • DHCP Client/Server
  • TCP Telnet (Client & Server)
  • Analogue voice
